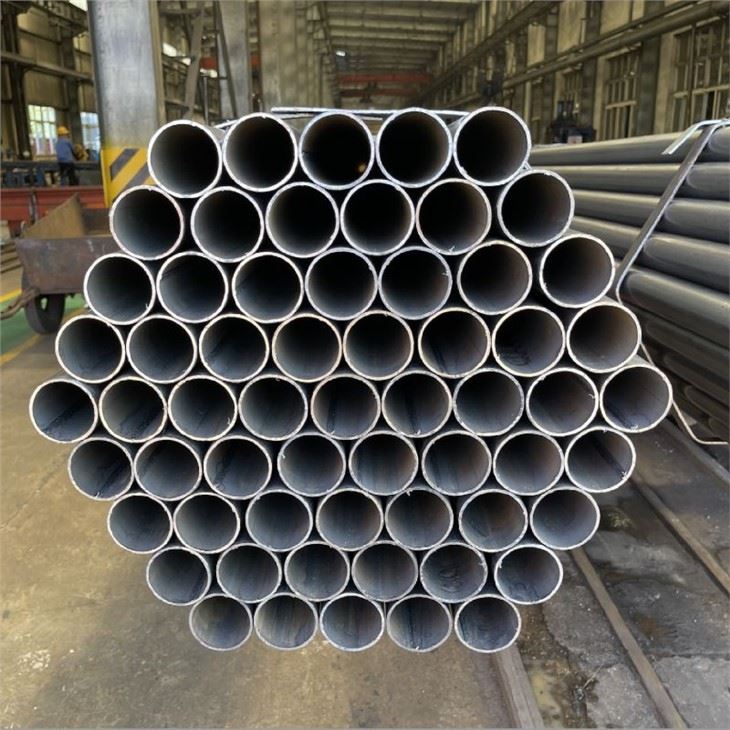

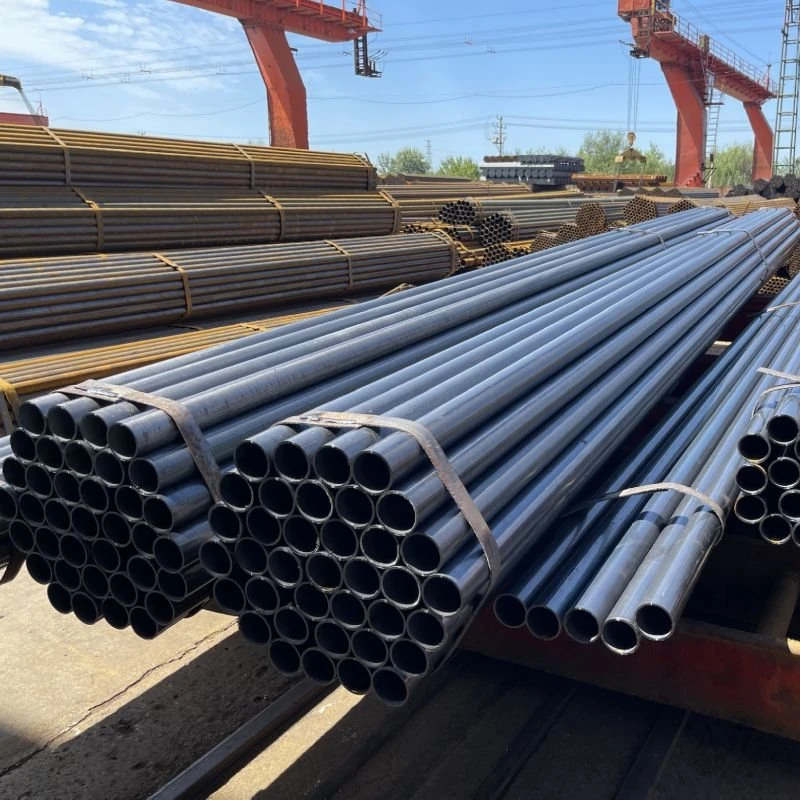

1.The specification of roller conveyor pipe
| Conveyor Roller Tube | Specification | The equivalent international standards for SANS657/3, ASTM513, AS1163, BS6323, and EN10305 are as follows: |
Steel grade | S355/S230,C350,E235,Q235B | |
Sizes | 63.5mm-219.1mm ect | |
Ovality tolerance of body | ≤0.4mm(60.3mm-152.4mm) | |
≤0.5mm(159MM-168.3mm) | ||
≤0.6mm(178mm-219mm) | ||
Straightness | 2000:1 |
2.The advantage of roller conveyor pipe:
1. The life time: More than 50000 hours
2. TIR (Total Indicator Runout)
0.5mm (0.0197") for Roll Length 0-600mm
0.8mm (0.0315") for Roll Length 601-1350mm
1.0mm (0.0394") for Roll Length over 1350mm
3. Shaft Float≤0.8mm
4. Samples for testing are available.
5. Lower resistance
6. Small maintain work
7. High load capability
8. Dust proof & water proof
